This rugged, heavy duty press precisely forms eyelets in circuit boards for repair or assembly. Has 9" throat depth to accommodate 18" wide circuit boards.

This rugged, heavy duty press precisely forms eyelets in circuit boards for repair or assembly.

Application

- Plated Hole Repair

Features and Benefits

- Heavy duty construction for stable eyelet forming per IPC guidelines
- Wide variety of tooling available - can form any commercially available eyelets

Throat Depth:
Minimum Throat Opening:
Tooling Shank Size:
Weight:

6.50" (16.50 cm)
1.00" (2.54 cm)
0.375" (9.52 mm)
28 lbs (13 kg)

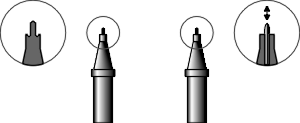

Eyelet Tooling

Eyelet tooling is made from hardened steel with .375" diameter shanks.

Form Tool     Anvil Tool

Eyelet No.

Form Tool

Anvil Tool

115-7206

110-5430

110-5330

115-7209

110-5430

110-5330

115-7306

110-5440

110-5340

115-7336

110-5450

110-5350

115-7339

110-5450

110-5350

115-7353

110-5450

110-5350

115-7366

110-5450

110-5350

115-7453

110-5460

110-5360

115-7456

110-5460

110-5360

115-7459

110-5460

110-5360

115-8359

Call

Call

115-8431

Call

Call

115-8646

Call

Call

115-8736

Call

Call
